PP750/Notos Bottle Valve and Regulator

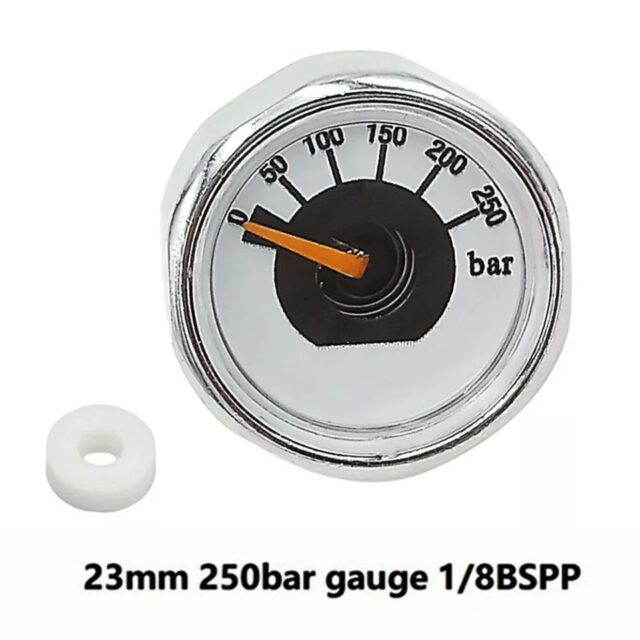

The regulator is pressure tested with part 66 installed on it to ensure the orings will hold in the correct postion. I’ve recently started adding a m16 nut to the part 66 so you can tighten the nut down against the bottle regulator in the correct position. If in stock, you can choose psi gauges as an option. It comes with MPA/BAR Gauges (30mpa is 300bar, they are roughly equivalent, you just add a zero on the mpa to get your BAR reading)

The regulator has m18x1.5 threads so you can install a carbon fiber bottle. It has an externally adjustable regulator and a gauge for the bottle pressure and another for the regulator pressure.

In order to adjust the regulator you need to loosen the lock nut on the adjuster above the bottle threaded area and then turn the hex screw counter clockwise to increase pressure and clockwise to decrease pressure. Don’t turn the pressure down when the gun is filled with air. First drain all the air out by loosening the regulator pressure gauge part way so the air escapes, then turn the adjuster clockwise to decrease pressure. Then you can gas it up again and turn the adjuster counter clockwise until the desired pressure in the regulator is reached.
