High Pressure Air Tank Charging Valve 300Bar Filling Station Cylinder Refill Adapter With M18x1.5 Thread

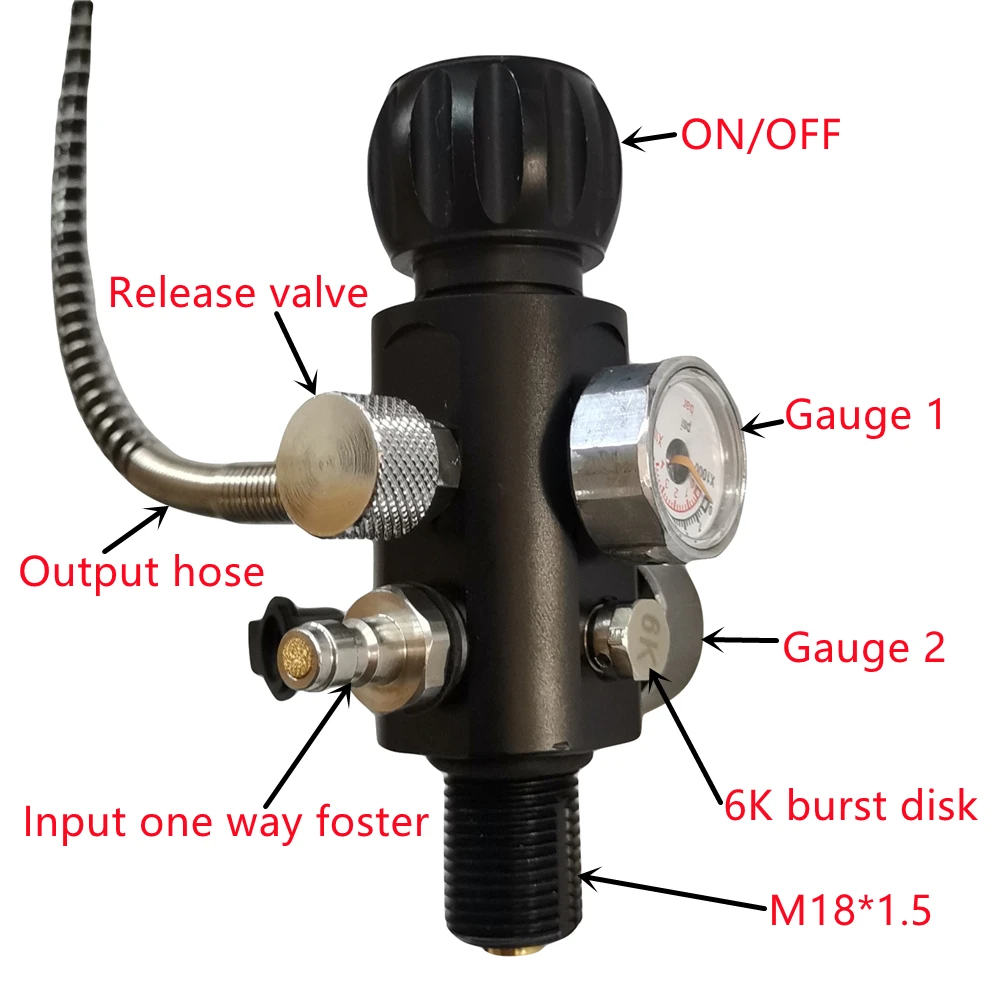

4500psi Tank Valve with Two High Pressure Gauges, one gauge always shows the pressure inside the tank
M18x1.5 male Inlet thread

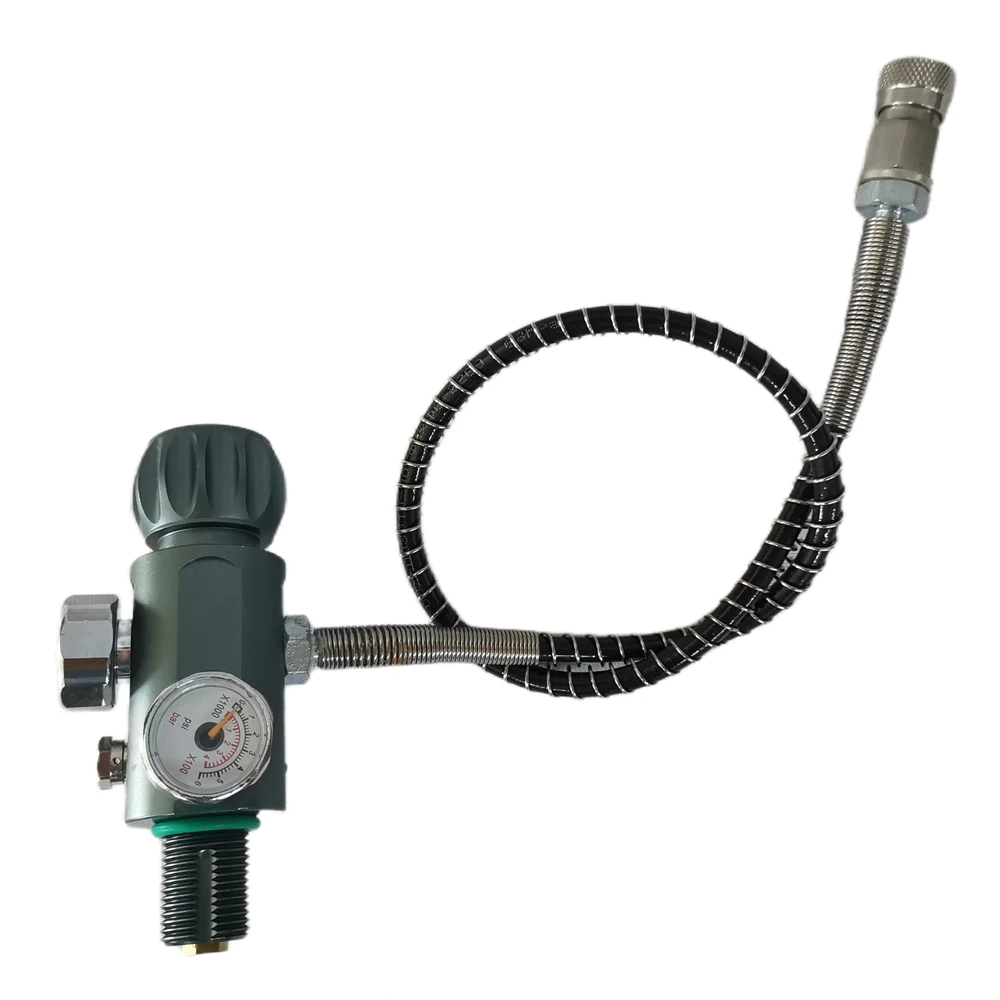

50cm high pressure charging hose
Tank ON/OFF valve
Comes with safety burst valve

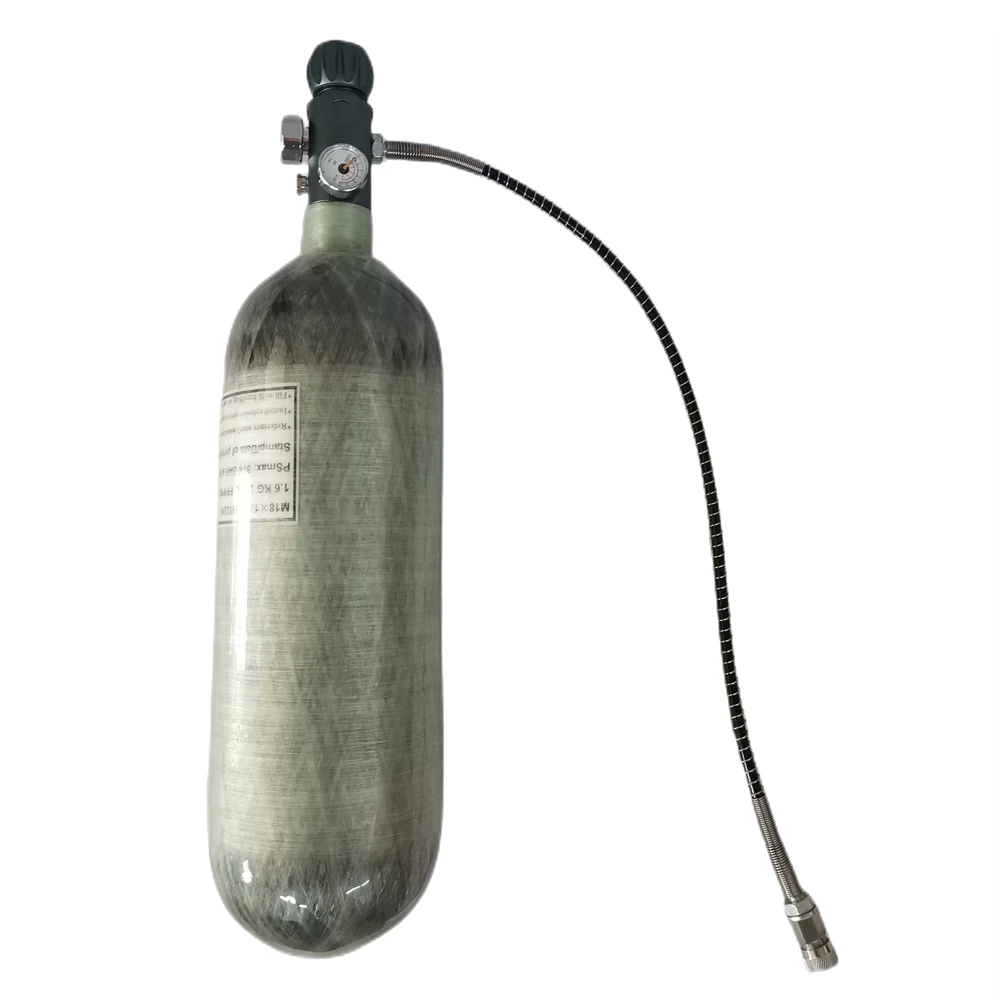

Fit for high pressure cylinder Carbon Fiber Tank with M18*1.5 thread
Thread of the pressure gauge is 7/16”-20UNF
Thread of the hose is M10x1
The one way valve has the same thread as the burst disk, 3/8-24UNF
Instructions for use
Suitable for M18*1.5 High Pressure Tank, with 6K burst disk, the working pressure is 0-4500psi/300bar
Refill the tank through the one way foster when turn off the switch
Use it with bigger tanks to fill your air reservoir via the output hose, turn off the switch and release the air after filling.
Gauge 1 shows the pressure inside the hose when filling
Gauge 2 always shows the pressure inside the tank
