Here’s a great option for those looking for an economical yet accurate chronograph that can be used at the range while target shooting. Battery operated, with infrared lighting for any light conditions. No more cursing at your chronograph in poor light!
You can select fps or mps by toggling the one button (default setting is mps). (after turning on wait til the number 2 shows then push and hold the button til MPS shows. click the button again and it will switch to fps. Press and hold to select fps, then release and click again to go to shooting mode. ) The weight of your projectile can also be added and the energy can be chosen instead of velocity if so desired for display.
Aluminum alloy, stainless steel material, support rod, velocity measurement, energy measure, speed energy, looking through record and view average.
This product is made by DIY, with concise and practical, accurate and durability for the purpose.
The core components are industrial-grade package, stable performance, small error.
This product for the speed of 1 to 999.9 meters per second projectile with accurate speed.
The utility model has the advantages of large effective induction area, convenient use and high sensitivity.
Strong adaptability to ambient light, indoor and outdoor can be used during the day and night.
Can save 20 sets of data, you can see the average.
Voltage: DC 6V
Battery(not included): 4 * AA battery
Working Temperature: 30℃ – 60℃
Accuracy: test error ≤0.5%

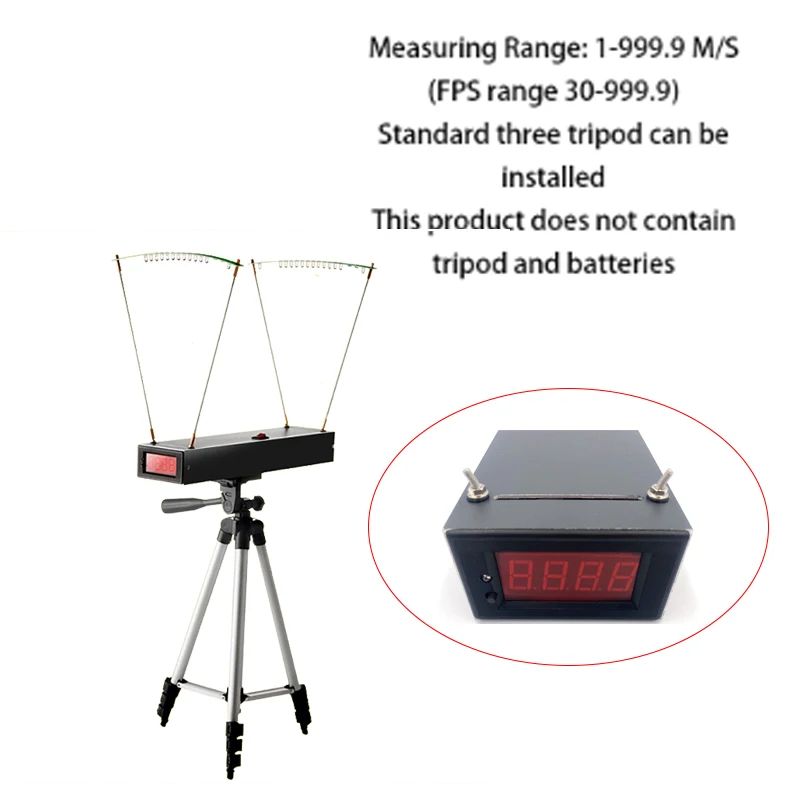

Measuring Range: 1-999.9 M/S (FPS range 30-999.9)
Standard three tripod can be installed
This product does not contain tripod or batteries. Small tripod can be added.
Item Size: 330 * 80 * 44mm / 12.99 * 3.15 * 1.73in
Package Size: 350 * 110 * 110mm / 13.78 * 4.33 * 4.33in

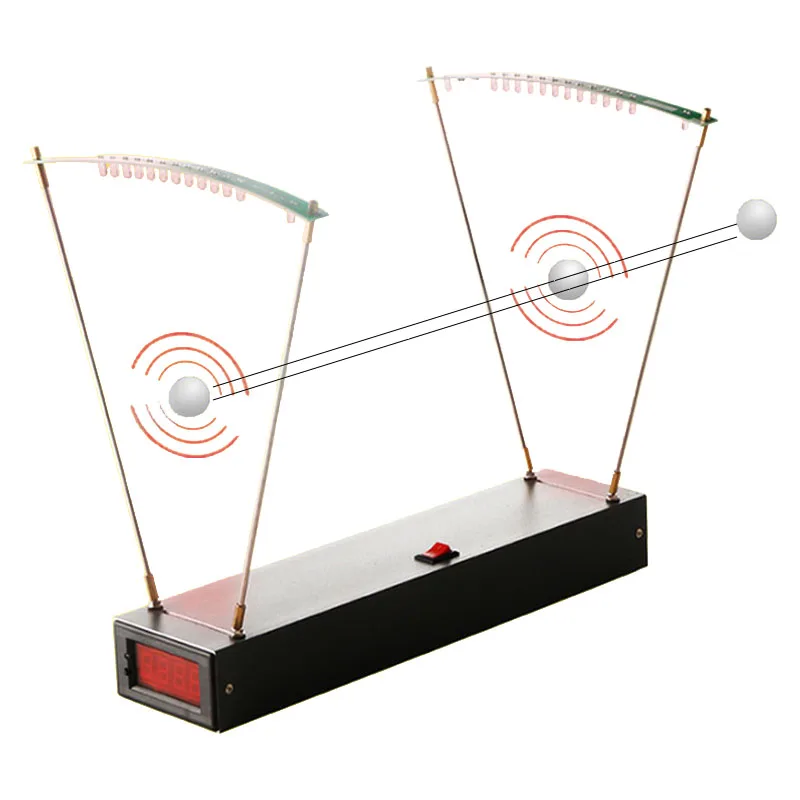

This product is infrared radiation type, the light source has been integrated in the machine, no external light source. Recommended for use in low light environments. The darker the ambient light, the better the machine performance. For outdoor use and strong light conditions, a light shield must be added.
When measuring the speed of the projectile with higher speed. Please take appropriate protective measures. In order to avert the rebound of the projectile after hitting the machine and causing damage.
Observe the marking on the left and right sides of the light bar when installing, and the strip with the light is facing down.
1 * One Set of Speed Measuring Instrument
